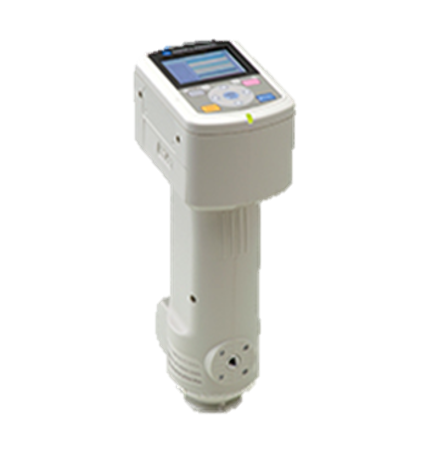

Konica Minolta Spectrophotometer CM-16d
The All New CM-16d handheld spectrophotometer with vertical alignment and sphere geometry
The CM-16d spectrophotometer is the successor model to CM-600d. The CM-16d is a vertical portable spectrophotometer designed for ease of use and ergonomic handling. Spectrophotometer CM-16d is a reliable and affordable spectrophotometer that is well-suited for a variety of color measurement applications that includes quality control, color management and research and development
Its advanced features and high accuracy make it an ideal choice for professionals who need to ensure the color consistency of their products.
It offers some new features that make it a versatile and reliable tool for color measurement applications. Here are some key features:
- Ergonomic Design: Easy to grip and suitable for one-handed operation.
- Measurement Accuracy: Improved accuracy, especially for black colors, with a di:8° and de:8° integrating sphere.
- Fast Measurement: Short measurement time of approximately 0.7 seconds.
- Wireless Connectivity: Optional WLAN/Bluetooth module for wireless data transfer.
APPLICATIONS:
Plastic | Paint | Packaging | Metal | Ink | Anodizing etc
CM-16d Spectrophotometer
- Vertical orientation: The CM-16d features a vertical orientation, which makes it easier to measure small and curved samples.
- Wavelength Analysis & Adjustment (WAA): The CM-16d is equipped with WAA technology, which compensates for any wavelength shift that may occur due to external factors such as temperature changes or aging.
- Improved measurement speed and repeatability: While not as fast as the CM-17d, the CM-16d still offers reasonably fast measurement times and good repeatability.
- Inter-instrument agreement (IIA): The CM-16d has a high IIA, which means that measurements taken with different CM-16d instruments will be consistent.
- Wireless connectivity: The CM-16d can be connected to a computer or other device via Wi-Fi, making it easy to transfer and analyze measurement data.
CM-16d Spectrophotometer
Model | CM-16d |
Illumination/viewing system | di:8°,de:8° (diffuse illumination: 8° viewing), SCI (specular component included) / SCE (specular component excluded) switchable |
Applicable standards for illumination/viewing system | Conforms to ISO7724/1, CIE No.15 (2004), ASTM E 1164 (SCI), DIN5033 Teil7, JIS Z 8722 Condition c standard |
Integrating sphere | Ø40 mm |
Detector | Dual 32-element silicon photodiode arrays |
Spectral separation device | Planar diffraction grating |
Wavelength range | 400 nm to 700 nm |
Measurement wavelength pitch | 10 nm |
Half bandwidth | Approx. 10 nm |
Reflectance range | 0 to 175%; Resolution: 0.01% |
Light source | Pulsed xenon lamp (with UV cut filter) |
Measurement time | Approx. 0.7 s (Measurement mode: SCI or SCE, from pressing trigger button to measurement completion) |
Minimum measurement interval | Approx. 1.5 s (Measurement mode: SCI or SCE) |
Battery performance | Approx. 2,000 measurements (approx. 1,000 measurements when using Optional WLAN/Bluetooth module) when measurements are taken at 10-second intervals at 23°C with the dedicated lithium battery, without using electric view finder |
Measurement area/ Illumination area | MAV: Ø8 mm/Ø11 mm |
Repeatability | Standard deviation within ΔE*ab 0.04 (When a white calibration plate is measured 30 times at 5-second intervals after white calibration under Konica Minolta standard conditions) |
Inter-instrument agreement | Within ΔE*ab 0.2 (Based on average for 12 BCRA Series II color tiles; MAV SCI; compared to values measured with a master body under Konica Minolta standard conditions) |
Display | 2.7-inch TFT color LCD with reversible portrait viewing mode |
Internal Performance Check | WAA (Wavelength Analysis & Adjustment) Technology*1 |
Interface | USB 2.0; WLAN (IEEE 802.11 b/g/n)/Bluetooth(Ver.4.1, SPP-compatible.) Optional WLAN/Bluetooth module required*2 *3 |
Camera viewfinder function | – |
Observer | 2° Standard Observer, 10° Standard Observer |
Illuminant | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, User-defined illuminant*4 (Max. 3 types) (Simultaneous evaluation with two light sources possible) |
Display items | Colorimetric values/graph, color difference values/graph, spectral graph, pass/fail judgment, pseudocolor |
Color spaces | L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, and color difference in these spaces; Munsell (C) |
Indices | MI, WI (ASTM E313-73/ASTM E313-98); YI (ASTM E313-73, ASTM D1925); ISO brightness (ISO2470); WI/Tint (CIE); Tristimulus Strength; Opacity; Grey scale (ISO 105-A05); gloss value; User index*5, Blackness (My) (ISO18314-3/DIN55979); Jetness (Mc) (ISO18314-3); Undertone (dM) (ISO18314-3) |
Color difference equations | ΔE*ab (CIE1976); ΔE*94 (CIE1994); ΔE00 (CIEDE2000); CMC (l:c); Hunter ΔE; DIN99o; FMC-2; ΔE*94 (Special)*6 |
Data memory | 1,000 target data + 5,000 sample data |
Power | AC power supply: USB Type-C AC adapter (Power Delivery compatible, 15 W or more) Battery: Lithium-ion battery (removable) USB charging: USB bus power (with lithium-ion battery installed) |
Charging time | Approx. 3.5 h (rapid charge) / Approx. 6 h(standard) |
Size | Approx. 79(W)×230(H)×128(D) mm |
Weight | Approx.660 g (Lithium-ion battery included) |
Operating temperature/ humidity range | Temperature: 5 to 40°C; Relative humidity: 80% or less (at 35°C) with no condensation |
Storage temperature/ humidity range | Temperature: 0 to 45°C; Relative humidity: 80% or less (at 35°C) with no condensation |
Spectrophotometer CM-16D
