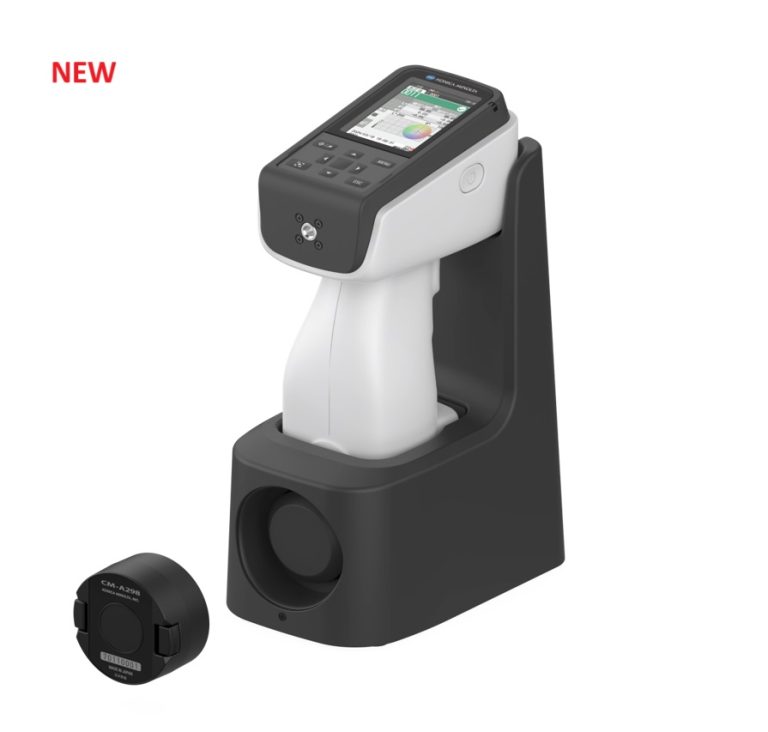

Spectrophotometer CM-17d (NEW)
The All New Handheld Spectrophotometer CM-17d With Vertical Alignment And Sphere Geometry
Introducing Konica Minolta all new advanced handheld spectrophotometer model CM-17d with vertical design. CM-17d is the successor model to CM-700d.
Konica Minolta CM-17d spectrophotometer is now equipped with a state-of-the-art camera viewfinder. This new features takes color measurement to the new level by providing a clear view of the target or sample area. The camera viewfinder allows for precise alignment and eliminates guesswork, ensuring that the positioning of the measurement spot falls inside the measure area.
the CM-17d another key features is with Wavelength Analysis & Adjustment (WAA) technology. WAA compensates for any wavelength shift that may occur due to external factors such as temperature changes or aging. This ensures that measurements taken with the CM-17d are accurate and consistent over time. The CM-17d with WAA technology is a powerful and versatile spectrophotometer that is well-suited for a variety of color measurement applications.
Overall Konica Minolta spectrophotometer CM-17d are powerful and versatile spectrophotometers that are well-suited for a variety of color measurement applications. ts advanced features and high accuracy make it an ideal choice for professionals who need to ensure the color consistency of their products.
APPLICATIONS:
Plastic | Paint | Packaging | Metal | Ink | Anodizing | Quality Control | Research & Development | Color Management etc.
CM-17d Spectrophotometer
- Vertical orientation: The CM-17d features a vertical orientation, which makes it easier to measure small and curved samples.
- Electronic viewfinder: The device includes an electronic viewfinder that helps users to accurately position the spectrophotometer on the sample.
- Wavelength Analysis & Adjustment (WAA): The CM-17d is equipped with WAA technology, which compensates for any wavelength shift that may occur due to external factors such as temperature changes or aging.
- Improved measurement speed and repeatability: The CM-17d offers faster measurement times and improved repeatability, especially on dark and glossy materials.
- Inter-instrument agreement (IIA): The CM-17d has a high IIA, which means that measurements taken with different CM-17d instruments will be consistent.
- Wireless connectivity: The CM-17d can be connected to a computer or other device via Wi-Fi, making it easy to transfer and analyze measurement data.
SPECTROPHOTOMETER CM-17d
Model | CM-17d |
Illumination/viewing system | di:8°,de:8° (diffuse illumination: 8° viewing), SCI (specular component included) / SCE (specular component excluded) switchable |
Applicable standards for illumination/viewing system | Conforms to ISO7724/1, CIE No.15 (2004), ASTM E 1164 (SCI), DIN5033 Teil7, JIS Z 8722 Condition c standard |
Integrating sphere | Ø40 mm |
Detector | Dual 32-element silicon photodiode arrays |
Spectral separation device | Planar diffraction grating |
Wavelength range | 400 nm to 700 nm |
Measurement wavelength pitch | 10 nm |
Half bandwidth | Approx. 10 nm |
Reflectance range | 0 to 175%; Resolution: 0.01% |
Light source | Pulsed xenon lamp (with UV cut filter) |
Measurement time | Approx. 0.7 s (Measurement mode: SCI or SCE, from pressing trigger button to measurement completion) |
Minimum measurement interval | Approx. 1.5 s (Measurement mode: SCI or SCE) |
Battery performance | Approx. 2,000 measurements (approx. 1,000 measurements when using Optional WLAN/Bluetooth module) when measurements are taken at 10-second intervals at 23°C with the dedicated lithium battery, without using electric view finder |
Measurement area/ Illumination area | MAV: Ø8 mm/Ø11 mm SAV: Ø3 mm/Ø6 mm *Can be changed by replacing the target mask and switching the lens position |
Repeatability | Standard deviation within ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5-second intervals after white calibration under Konica Minolta standard conditions) |
Inter-instrument agreement | Within ΔE*ab 0.12 (Based on average for 12 BCRA Series II color tiles; MAV SCI; compared to values measured with a master body under Konica Minolta standard conditions) |
Display | 2.7-inch TFT color LCD with reversible portrait viewing mode |
Internal Performance Check | WAA (Wavelength Analysis & Adjustment) Technology*1 |
Interface | USB 2.0; WLAN (IEEE 802.11 b/g/n)/Bluetooth(Ver.4.1, SPP-compatible.) Optional WLAN/Bluetooth module required*2 *3 |
Camera viewfinder function | Using internal camera; Images can be shown on display. |
Observer | 2° Standard Observer, 10° Standard Observer |
Illuminant | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, User-defined illuminant*4 (Max. 3 types) (Simultaneous evaluation with two light sources possible) |
Display items | Colorimetric values/graph, color difference values/graph, spectral graph, pass/fail judgment, pseudocolor |
Color spaces | L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, and color difference in these spaces; Munsell (C) |
Indices | MI, WI (ASTM E313-73/ASTM E313-98); YI (ASTM E313-73, ASTM D1925); ISO brightness (ISO2470); WI/Tint (CIE); Tristimulus Strength; Opacity; Grey scale (ISO 105-A05); gloss value; User index*5, Blackness (My) (ISO18314-3/DIN55979); Jetness (Mc) (ISO18314-3); Undertone (dM) (ISO18314-3) |
Color difference equations | ΔE*ab (CIE1976); ΔE*94 (CIE1994); ΔE00 (CIEDE2000); CMC (l:c); Hunter ΔE; DIN99o; FMC-2; ΔE*94 (Special)*6 |
Data memory | 1,000 target data + 5,000 sample data |
Power | AC power supply: USB Type-C AC adapter (Power Delivery compatible, 15 W or more) Battery: Lithium-ion battery (removable) USB charging: USB bus power (with lithium-ion battery installed) |
Charging time | Approx. 3.5 h (rapid charge) / Approx. 6 h(standard) |
Size | Approx. 79(W)×230(H)×128(D) mm |
Weight | Approx.700 g (Lithium-ion battery included) |
Operating temperature/ humidity range | Temperature: 5 to 40°C; Relative humidity: 80% or less (at 35°C) with no condensation |
Storage temperature/ humidity range | Temperature: 0 to 45°C; Relative humidity: 80% or less (at 35°C) with no condensation |
