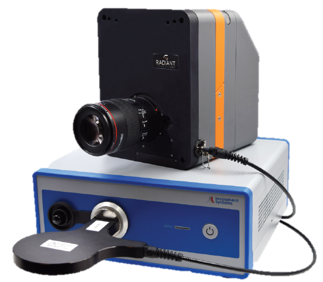

PROMETRIC® I16-SC Imaging Photometer With Integrated Spectrometer
Prometric I16-SC – Combination of Imaging Colorimeter And Spectrometer For Complete Color Measurement In A Single Solution
The ProMetric I-SC Solution uses a polarization-insensitive mirror to combine the functions of an enhanced ProMetric I imaging colorimeter with Instrument Systems GmbH high-end CAS 140D spectroradiometer. This innovative design is based on patented technology developed by Radiant Vision Systems (US Patent No. 8482652). Using a measurement image acquired by the connected imaging colorimeter, the ProMetric I-SC simultaneously measures spectral data at the center point while quantifying and comparing spatial luminance (cd/m2) and chromaticity (CIE x,y and u′v′) values across the image to evaluate a device. Both systems are controlled using a single software platform, which also provides a centralized interface for data visualization and output.
ProMetric I-SC colorimeters are optimized to work with industry-leading TrueTest™ Automated Visual Inspection Software from Radiant Vision Systems. TrueTest provides a complete turnkey solution for production-level test sequencing using a library of light measurement and inspection software tools. From absolute accuracy in product design to optimal efficiency for in-line quality control, the ProMetric I-SC Solution is engineered specifically to address end-to-end metrology applications. Learn more
APPLICATIONS
Uniformity Testing | R&D Settings | Production Line Testing | Display Testing | Color Correction
PROMETRIC® I16-SC IMAGING COLORIMETER WITH INTEGRATED SPECTROMETER
- Combination imaging colorimeter/spectrometer for fast and accurate color measurement
- Spectral measurement capability, data visualization, and output
- CIE-matched color filters for measuring luminance and chromaticity values precisely correlated with human visual perception
- On-demand or automatic calibration based on user-defined settings in software
- High-speed measurement and communications to support manufacturing demands
- Integrated with an enhanced ProMetric I61 Imaging Colorimeter (61-megapixel resolution)
- Compatible with Radiant’s AR/VR Lens for in-headset calibration and measurement
- Seamless operation with TrueTest software packages
- Easy-to-use interface for visualizing, applying, and exporting spectral and colorimetric measurement data
PROMETRIC® I-SC IMAGING COLORIMETER WITH INTEGRATED SPECTROMETER
| Parameter | ProMetric® I61-SC |
| Sensor Pixel Resolution | 9568 x 6380 |
| Sensor Megapixels | 61 |
| Sensor Type | CMOS |
| System Dynamic Range (single exposure, per pixel) | 76db (1 x 1 binning) |
| Luminance (Minimum)* | 0.0005 cd/m² Limit of Detection 0.0010 cd/m² @ SNR = 60 0.0015 cd/m² @ SNR =100 |
| Luminance (Maximum) | 1010 cd/m² with optional ND fliters |
| System Accuracy** | Illuminance + 3% Luminance (Y) + 3% Color Coordinates (x,y) + 0.003 |
| Short-term Repeatability | Illuminance + 0.02% Luminance (Y) + 0.02% Color Coordinated (x,y) + 0.00005 |
| Lens Type | Electronically controlled focus and aperture |
| Focal Distance Available | 50, 100 mm |
| Field of View (Full Angle, H x V degrees) | 50 mm 40° x 26° 100 mm macro 20° x 14° |
| Minimum Measurement times*** | 0.6 sec (photopic) 1.8 sec (color) |
| Spatial Measurement Capabilities | Luminance, Radiance, Illuminance, Irradiance, Luminous Intensity, Radiant Intensity CIE Chromaticity Coordinates, L*a*b* Color Scale, Correlated Color Temperature (CCT), Dominant Wavelength |
| Units Of Measurement | foot-lambert, cd/m², nit, W/sr/m², foot-candles, lux, lux-s, W/m², W-s/m², candela, W/sr, CIE (x,y) and (u’v’), Kelvin (CCT) |
| Communical Interface | 10 Gibabit Ethernet (10GigE) |
| Power | 100~240V, 50~60Hz, 140 Watts |
| LCD Touch Panel | Resolution 800 x 600, Diagonal: 125mm |
| Dimensions (H x W x D) | 238 mm x 181 mm x 230 mm |
| Weight | 4.6 Kg |
| Operating Temperature | 5° ~ 35° C |
| Operating Humidity | 20 ~ 70% non-condensing |
| Parameter | Spectroradiometer |
| Lumianance Minimum | 0.02 cd/m2 |
| Luminance Maximum (using ND3 Filter | 1000000 cd/m2 |
| Spectroradiometer Absolute Accuracy | Color Cor Cordinates (x,y) + 0.0015 fro CIE standard illuminant A |
| Short-term Repeatability | + 0.1% (2 sigma) |
| Minimum Measurement Time | 200 ms |
| Measurement Spot Size | Corresponding ~600 I61 imaging colorimeter sensor pixels (in diameter) |
| Communication Interface | Ethernet 100/1000 |
| Power Supply | Wide-range inpit 100 ~240 VAC 50/60 Hz |
| Dimensions (H x W x D) | 144 mm x 341 mm x 359 mm |
| Weight | 9 Kg |
| Operating Temperature | 15° ~35° C |
| Operating Humidity | Relative humidity 0 ~ 70% mas, non condensing |
Specifications subject to change without notice.
PROMETRIC® I16-SC IMAGING COLORIMETER WITH INTEGRATED SPECTROMETER
ProMetric I-SC imaging colorimeters, and the electronically-controlled lenses supplied with them, are factory-calibrated over all possible distances and two specific aperture settings. Because the lenses are electronically controllable for focus (working distance) and aperture, the colorimeter will automatically apply the appropriate flat-field correction
| Lens | Calibrated Apertures |
| Canon EF-50 mm R f/2.0 USM | f/4 f/8 |
| Canon EF-100 mm f/2.8L Macro IS USM | f/4 f/8 |
| ProMetric I-SC imaging colorimeters optionally can be fitted with an AR/VR Lens to measure near-eye displays in augmented (AR), virtual (VR), or mixed reality (MR) headsets |
