Optimap™ 3 PSD (Phase Stepped Deflectometry)
Automotive Paint Defects And Surface Texture Analysis Tools

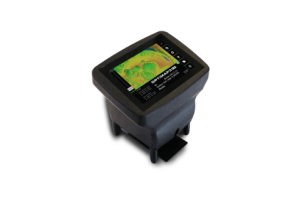

The Rhopoint Optimap3 is a portable solution designed for rapid and comprehensive surface inspection . It’s particularly well-suited for analyzing large surface areas of both coated and uncoated materials.
Here’s a breakdown of the key functionalities of the Rhopoint Optimap3:
- Advanced Surface Metrology: It objectively measures and characterizes various aspects of surface quality, including texture, waviness, and localized defects like scratches, dents, and orange peel.
- Large Measurement Area: Compared to profilometers or other scanning instruments, the Optimap3 boasts a larger measurement area (65 x 54mm), enabling more representative analysis.
- High-Speed Operation: Measurements are completed in under 10 seconds, making it a time-efficient tool for quality control applications.
- Detailed Results: The Optimap3 captures surface details invisible to the naked eye, with a lateral resolution of less than 37 microns.
- Traceable Measurements: The instrument provides results in traceable SI units or other industry-specific units, ensuring data reliability.
- On-Screen Functionality: Powerful software allows for cross-sectional viewing of the analyzed surface, facilitating the detection and characterization of surface irregularities.
The optimap3 can measures:
- Orange Peel
- Waviness
- DOI
- Overspray
- Inclusion
- Blistering
- Sagging
- Water Stains
Overall, the Rhopoint Optimap3 is a valuable tool for manufacturers and quality control professionals who require a fast, detailed, and objective method for analyzing surface texture, waviness, and defects across large areas. Contact us for quote
APPLICATIONS:
Automotive | Yatch Manufacturer | Aerospace | Composite | Wood Coatings | Paint Coatings | Automotive Refinished | Metal Polisher | Tablet PC, Smartphone and Latop Covers
FEATURES
Rhopoint Optimap3™ PSD
- Large measurement area (65 x 54mm) for capturing a bigger picture of the surface quality.
- Fast operation speed (under 10 seconds) to efficiently analyze large surface areas.
- Lateral resolution of less than 37 microns to detect defects invisible to the human eye.
- On-screen functionality including cross-sectional viewing for detailed analysis of surface irregularities
- Ability to report results in traceable SI units or other industry-specific units for easy data interpretation.
SPECIFICATIONS
Rhopoint Optimap3™ PSD
| Instrument Information | ||
|---|---|---|
| Measurement | Compatibility | Optimap1, 2 & 3, TAMS, RoboTAMS |
| Field of View | 65 x 54mm | |
| Measurement Focus | Dual Focus – Target Images and Surface | |
| Spatial Resolution | 37 um/pixel | |
| Measurement Techniques | Phase Measurement Deflectometery Optical Transfer Function Line Deformation Analysis Surface Imaging | |
| Measurement Time | 10 Seconds | |
| Topographical Output | Curvature Map Altitude Map | |
| Filter Options | Wavescan Band Filtering User Definable ISO GPS High Pass, Low Pass, Band Pass | |
| Profile Analysis | Yes | |
| Measurement Parameters | K, Ka, Kb, Kc, Kd, Ke, KLW, KSW, T, Ta, Tb, Tc, Td, Te, TLW, TSW, Q, H, S, W, D, C, RaX, RaY, Sa, Rsm | |
| Hardware | Processor | Intel i7 Gen 5 |
| Memory | 256 GB | |
| Battery | Rechargeable Lithium ion 12000mAh | |
| Typical Use/Charge | 3 – 4 hours / charge | |
| Camera | 3.2 MP- dual Focus | |
| Output Data | Maps/CSV/Results database | |
| Data Transfer/Speed | SD Card – 12.5 MBs | |
| Display | 10.1 Capacitive Touch 1280 x 800 | |
| Dimensions | 233mm (H) x 314mm (H) x 235mm (D) | |
| Carry options | 6 Point harness anchors | |
